Model
Model No.: 238S01FVF
Size: 23.8"

Monitor Display Spec
Surface Treatment: Anti-Glare, Hard Coating (3H)
Curvature or Flat: Flat
Panel type (Display Mode): VA panel
Brightness(Typical): 250 cd/m² (Max.)
Contrast(Typical): 4000:1
Color Pixel Pitch(mm): 0.0915 (H) x 0. 2745(V)
Resolution (H x V): 1920 x 1080
Aspect Ratio: 16:9
Response Time (Typical): 6ms Typ
View Angles LR, UD (CR=10): 178°(H) / 178°(V)
Display Colors: 16.7M
NTSC(Area): 72%

PC Input Range
Horizontal Freq: 53.7k-90KHz
Vertical Freq: 48 to 60HZ
Max. display frequency (Resolution H x V/Fv): 1920 x 1080 60Hz for HDMI

Interface
Input 1 VGA: No
Input 2 DVI: No
Input 3 HDMI: HDMI 1.4 x 2
Input 4 DP: No
Input 5 USB: USB2.0 x2
Output Type-C: No
Input 6 Type-C: No
PBP / PIP: No
lifting base / revolving stand: No
Input Mini DP: No

Output Terminal
Earphone Jack: Yes
Speaker(Typical, Amplifier output): 4O 5W x 2

Function configuration
Chip: MT9216
DDR: 1G
EMMC: 8G
Android version: Android 11
WIFI: MT7663 (WIFI 802.11a/b/g/n/ac)
BT: 5.1
Remote controller: Yes
Voice control: Yes
APPS: NETFLIX/YOUTUBE/PRIME VIDEO/Google Play
USB:
- Video: VP9/HEVC/H.265/MPEG4/H.264/XviD/AVS/VC1/MP4
- Audio: MP3 /AC3(DD)/AAC/OGG/M4A/RM/WMA 10/AC4
- Photo: JPEG/PNG/BMP/JPG

Power
Consumption(Typical): On: <36 W, Standby<=0.5W, Off<=0.5W
AC Power Range: 100-240V~, 50/60Hz
Power Mode: Adapter DC 12V 3A
Indicator Light: On: Blue, Stand By: Orange, Power Off: Off
Energy: 19W 5.5 STAR

Physical
Dimension with Stand(W x D x H): 537.85 x 170.10 x 396.89mm
Dimension with out Stand(W x D x H): 537.85 x 46.33 x 315.60mm
Dimension with Package(W x D x H): 593 x 108 x 375mm
Net Weight: 2.48kg
Gross Weight: 3.58kg
Tilt: -5° ~ 15° (+/-2°)
High Adjustable Arm: No
Swivel: No
Pivot: No
Kensington Lock: Yes

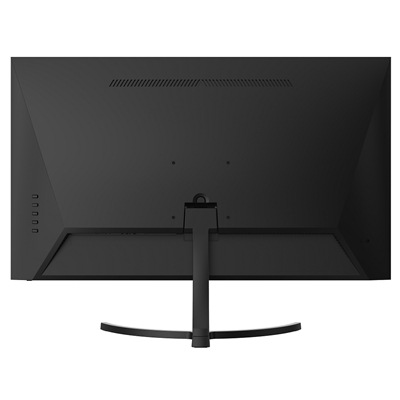

VESA Mounting: 75 x 75 (screw hole: 4 holes with M4 x 8 mm)

Function
Anti-flicker: Yes
Adaptive sync: Yes
G-Sync: Compliant
Free Sync: Compliant
Anti-Bluelight: Yes
HDR / DCR: No
Over Drive: No
Anti-glare: Yes
Daisy Chain: No

Controls
Back Control: Power, Menu, Enter, Vol+, Vol-
On Screen Display: 14 Language: English / Italian / German / Spanish / Romanian / Hungarian / Czech / French / Portuguese / Bulgarian / Polish / Dutch / Slovak / Greek
Color: 6500, 7500, 9300, User
Preset Mode: GAME, MOVIE, PHOTO, STANDARD
Sound system: Balance/Bass/Treble

Accessory
Power Adaptor: Adaptor x 1
Power Cord (1.5m): No
VGA Cable(1.5m): No
Audio Cable(1.8m): No
DVI Cable(1.5m): No
DP Cord(1.5m): No
HDMI Cable(1.5m): Yes
Stands: Metal central base
User Manual: x 1
