Product Name

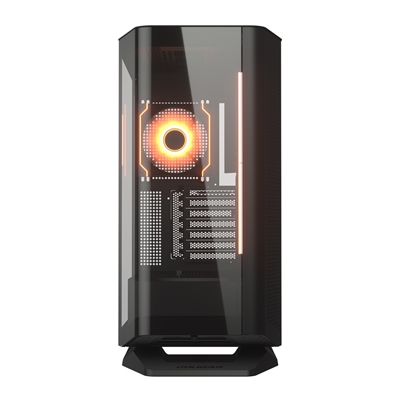

FV270 RGB

Case Form Factor
Mid Tower

Motherboard Type
Mini ITX
Micro ATX
ATX
CEB
E-ATX

Dimensions (WxHxD)
268 x 530 x 512 (mm)
10.6 x 20.9 x 20.2 (in)

I/O Panel
Type C Gen 2 x 1
USB 3.0 x 2
4 Pole Headset Audio Jack
RGB Button

3.5" Drive Bay
2

2.5" Drive Bay
2+2 (converted from 3.5" drive bays)

Expansion Slots
7 (horizontal slots can be converted into vertical slots)

Vertical GPU Support
Yes

Cooling Fan Support
Top: 120mm x 3 / 140mm x 2
M/B Side: 120mm x 2 / 140mm x 2
PSU Shroud: 120mm x 2 / 140mm x 2
Bottom: 120mm x 1
Rear: 120mm x 1 / 140mm x 1

Pre-installed Fans

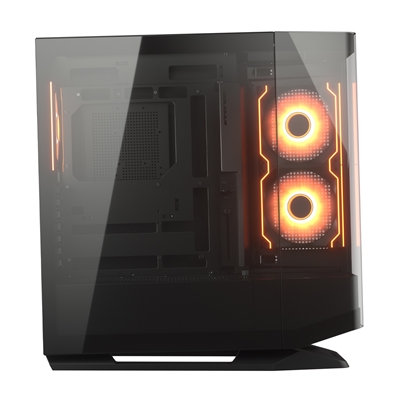

M/B Side: 140mm Reversed ARGB PWM fan x 2
Bottom: 120mm Reversed ARGB PWM fan x 1
Rear: 140mm ARGB PWM fan x 1
Speed: 500 (±200) - 1200 (±10%) RPM
Connector: 5V 3 Pin (ARGB) / 4 Pin (Fan)

Maximun Number of Fans
9

Water Cooling Support
Top: 360mm / 280mm / 240mm / 140mm / 120mm
M/B Side: 280mm / 240mm / 140mm / 120mm
PSU Shroud: 240mm / 120mm
Bottom: -
Rear: 140mm / 120mm

PWM and RGB Hub Sync with M/B
Yes

Max. Graphics Card Length
Horizontal:
- 420 (mm) / 16.5 (in) (Only fans at the M/B Side)
- 330 (mm) / 13 (in) (Radiator with fans at the M/B Side)
Vertical: 450 (mm) / 17.7 (in)

Max. CPU Cooler Height
180 (mm) / 7.1 (in)

Max. PSU Length
250 (mm) / 9.8 (in)
