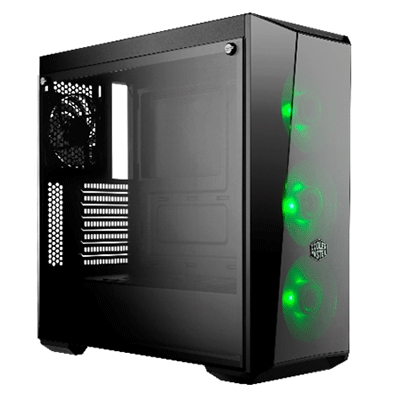

The MasterBox Lite 5 RGB ATX Case is your straightforward option for your PC build that doesn't ignore good looks, customization, or performance. It comes standard with 3 pcs 120 mm RGB Fans, installed behind a sleek DarkMirror front panel. With the three custom trim colors that are included in the box the case is offering a great first entry point for customization. The spacious interior features black coating and a PSU cover that allows for easy, clean configurations for your build. Additionally, it comes with an edge to edge tempered glass side panel to show your internal components. And with support for up to 4 cooling fans in total and a watercooling system, we ensure your performance will not suffer.

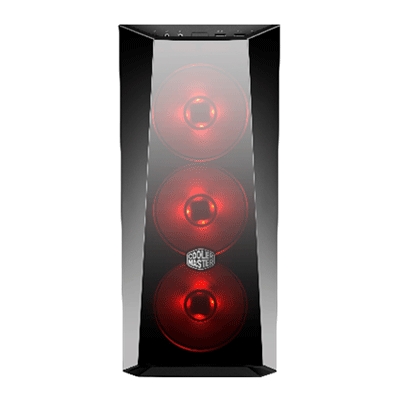

DarkMirror front panel - Stand out and be unique. Your case doesn't have to look boring.
RGB Fans - Three 120mm RGB fans are pre installed behind the front panel to create an amazing lighting effect.

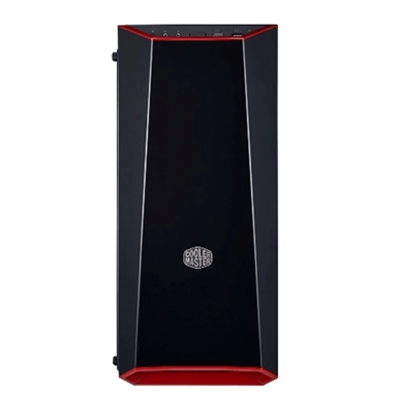

Customizable trim colors - Choose from three distinct colors to suit your style, all included in the box.
Edge to edge Tempered glass side panel - Show off your first build in style, and have easy access to your components in case things go haywire.

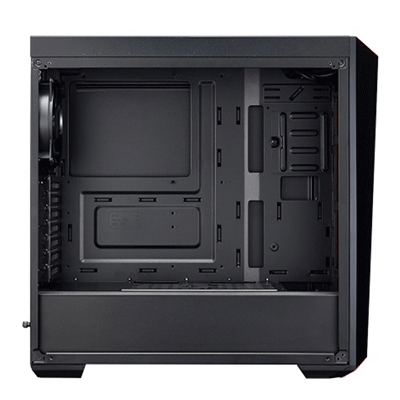

Full black coating & PSU cover - Let your system stand out with an all-black background.
Support for a total of 4 fans & watercooling - Four 120mm fans and front and rear watercooling support ensure that you don't have to compromise on performance.
Graphics card support up to 400mm - You won't ever have to worry about the fit of your graphics card, with support for even the largest, widest cards.


Product Number?
MCW-L5S3-KGNN-02

Product Name
MasterBox Lite 5 RGB

Available Color
Black

Materials
Steel, Plastic

Dimensions (LxWxH)?
468.8 x 200 x 454.5mm

Motherboard Support
ATX, Micro-ATX, Mini-ITX

Expansion Slots
7

Drive Bays
5.25" No
Combo 3.5" / 2.5" 2
SSD 1

I/O Port
USB 3.0 x 2, Audio In / Out


Pre-installed Fan(s)
Front 120mm x 3 RGB Fans
Rear 120mm x 1 black fan

Fan Support
Front 120mm x 3 / 140mm x 2
Rear 120mm x 1

Liquid Cooling Support
Front 120/140/240/280/360mm radiator (limited) up to 50mm thickness without fan
Rear 120mm x 1

Clearances
CPU Cooler 160mm
PSU 180mm
GPU 400mm
400mm (w/o 3.5" HDD cage)

Cable Routing
Behind Motherboard Tray 25mm - 35mm / 0.98” – 1.38”

Dust Filters
Front, bottom

Power Supply Support
Bottom mount, ATX

Net weight
5.07 kg

Gross weight
6.30 kg

Carton dimension (L x W x H)
547 x 282 x 535 mm
