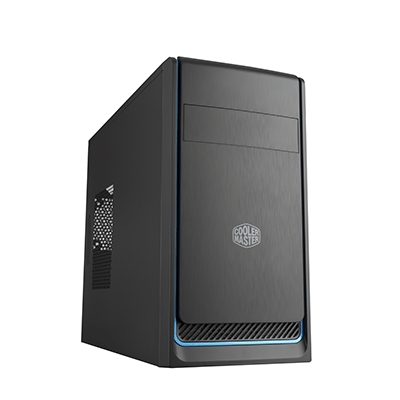

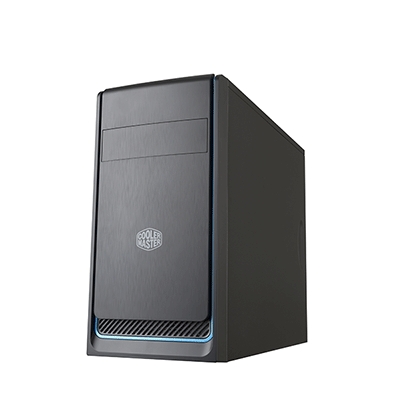

The MasterBox E300L combines practicality with an accent of style. Able to support high end graphics cards (363mm), Micro-ATX, and Mini-ITX motherboards, the E300L also has generous room for easy assembly.
The front panel keeps ventilation subtle while the side panel offers additional cooling support. Stand out from the rest with a color accent.
With a compact and sensible design, the E300L is a cost effective chassis for your computing needs

Features:

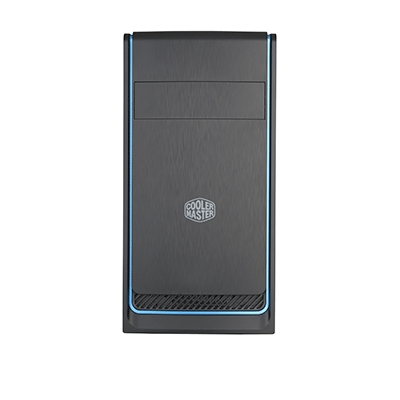

- Brushed Front Panel: The brushed texture of the front panel adds an elegant element to your workstation or office.
- Colored trim: Stand out from the rest with a nice color accent.
- Security Lock Anchor: Security lock protects your system by positioning the anchor directly onto the chassis.
- Side Panel with Air vent: Allows for additional airflow for cooling support.

Product Number
MCB-E300L-KN5N-B01

Product Name
MasterBox E300L

Available Color
Blue

Materials
Steel, Plastic

Dimensions ( L x W x H )
448mm x 180mm x 364mm

Motherboard Support
Micro-ATX, Mini-ITX

Expansion Slots
4

Drive Bays
5.25" 1
3.5" HDD 2
2.5” SSD 3

I/O Port
USB 3.0 x 2, Audio In / Out

Pre-installed Fan(s)
Front 120mm x 1

Fan Support
Front 80mm x 1 / 92mm x 1 / 120mm x 1
Top N/A
Rear 80mm x 1 / 92mm x 1
Bottom N/A

Radiator Support
Front N/A
Rear N/A

Clearances
CPU Cooler 148mm
GFX 363mm
PSU 180mm wo/ODD, 160mm w/ODD

Power Supply Support
Top mount, ATX

Net weight
3.98kg

Gross weight
4.7kgs

Carton dimension (L x W x H)
420 x 245 x 523 mm

EAN code
4719512071618

UPC code
884102044113
