Specifications

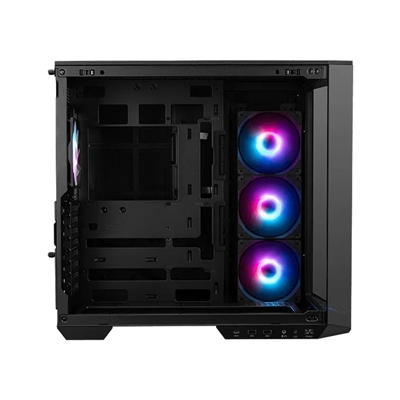

Product name: MAG PANO 100R PZ
Case form factor: Mid tower
Motherboard form factor support (regular): ATX / Micro-ATX / Mini-ITX
Motherboard form factor support (back-connect): ATX / Micro-ATX

I/O ports:
1 x USB 20Gbps Type-C
2 x USB 5Gbps Type-A
1 x Audio-out / Mic-in
1 x LED switch button, 1 x Power button

Drive mount support: 3 x 2.5”, 2 x 2.5”/3.5” combo
Expansion slots: 8
Maximum GPU length: 400 mm / 15.75 inches
Maximum CPU cooler height: 166 mm / 6.54 inches
Power supply support: ATX
Maximum PSU length: 200 mm / 7.87 inches

Fan size support (top): 3 x 120 mm / 3 x 140 mm
Fan size support (front): NA
Fan size support (rear): 1 x 120 mm
Fan size support (side): 3 x 120 mm / 2 x 140 mm
Fan size support (bottom): 3 x 120 mm / 2 x 140 mm / 2 x 160 mm

Pre-installed fan size (side): 3 x 120 mm
Pre-installed fan size (rear): 1 x 120 mm
Pre-installed fan type (side): 3 x ARGB reverse-blade
Pre-installed fan type (rear): 1 x ARGB

Radiator size support (top): 120 / 240 / 360 mm
Radiator size support (front): NA
Radiator size support (rear): 120 mm
Radiator size support (side): 120 / 240 / 360 mm
Radiator size support (bottom): 120 / 240 / 360 mm

Dimensions (DxWxH): 518.7 x 290 x 482 mm / 20.42 x 11.42 x 18.98 inches

Connections
1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 1 Type-A
mic in / audio out
LED switch button
power button
