CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset
B560

Memory
DDR4 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II

Graphics
Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 60Hz
Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K 60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K 30Hz

Expansion Slots
Intel® 11th &10th Gen Processors:
- 1 x PCIe 4.0/3.0 x16 slot(s)
- Intel® 11th Gen processors support PCIe 4.0 x16
- Intel®10th Gen processors support PCIe 3.0 x16
Intel® B560 Chipset:
- 1 x PCIe 3.0 x16 slot (supports x4 mode)
- 1 x PCIe 3.0 x1 slots

Storage
Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel®11th Gen Processors:
- M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® B560 Chipset:
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
6 x SATA 6Gb/s ports

Ethernet
1 x Intel® 1Gb Ethernet

USB
2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports

Audio
ALC887/897
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features:
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers

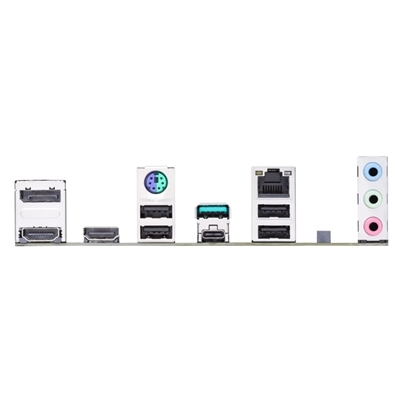

Back Panel I/O Ports
2 x USB 3.2 Gen 2 port(s) (1 x Type-A, 1 x USB Type-C®)
4 x USB 2.0 port(s) (4 x Type-A)
1 x DisplayPort
2 x HDMI™ port
1 x Intel® I219-V 1Gb Ethernet port
1 x V-M.2 slot (Key E)
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors
Fan and Cooling related:
- 1 x 4-pin CPU Fan header(s)
- 1 x 4-pin CPU OPT Fan header(s)
- 2 x 4-pin Chassis Fan header(s)
Power related:
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
Storage related:
- 2 x M.2 slots (Key M)
- 6 x SATA 6Gb/s ports
USB:
- 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen1 ports
- 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
- 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports
Miscellaneous:
- 2 x AURA Addressable Gen 2 header(s)
- 2 x AURA RGB header(s)
- 1 x Clear CMOS header
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x LPT header
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1pin)
- 1 x 20-3 pin System Panel header with Chassis intrude function

Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 RGB header(s)

Software Features
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables:
- 2 x SATA 6Gb/s cables
Miscellaneous:
- 1 x M.2 Rubber Package(s)
- 1 x M.2 SSD screw package(s)
- 1 x Vertical M.2 Key E bracket set
Installation Media:
- 1 x Support DVD
Documentation:
- 1 x User manual

Operating System
Windows 10 64bit

Form Factor
microATX
24.4cm x 23.4cm
