CPU
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Memory
4600(OC) / 4400(OC) / 4266(OC) / 4000(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3333(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered memory
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
ASUS OptiMem

Graphics
For Intel® 11th & 10th processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 60Hz
Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K 60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K 30Hz

Expansion Slots
Intel® 11th &10th Gen Processors:
- 1 x PCIe 4.0/3.0 x16 slot
- Intel® 11th processors support PCIe 4.0 x16
- Intel®10th processors support PCIe 3.0 x16
Intel® B560 Chipset:
- 1 x PCIe 3.0 x16 slot (supports x4 mode)
- 2 x PCIe 3.0 x1 slots

Storage
Intel® 11th Gen Processors:
- M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 )
- Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel® B560 Chipset:
- M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes)
- 6 x SATA 6Gb/s ports

USB
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x USB Type-C®)
4 x USB 2.0 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio
Realtek ALC897 7.1-Channel High Definition Audio CODEC
Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192kHz playback
Audio Features:
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers

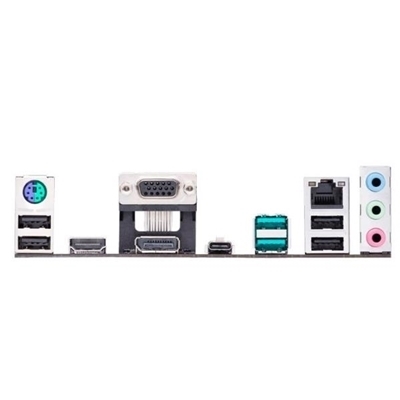

Back Panel I/O Ports
1 x DP port
1 x HDMI port
1 x D-Sub port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
1 x Intel® I219-V 1Gb Ethernet port
4 x USB 2.0 ports (4 x Type-A)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1x USB 3.2 Gen 1 port (1 x USB Type-C®)

Internal I/O Connectors
Fan and cooling-related:
- 1 x 4-pin CPU Fan header
- 3 x 4-pin Chassis Fan headers
Power related:
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
Storage related:
- 2 x M.2 slots (Key M)
- 6 x SATA 6Gb/s ports
USB:
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous:
- 2 x AURA Addressable Gen 2 headers
- 2 x AURA RGB headers
- 1 x Clear CMOS jumper
- 1 x COM Port header
- 1 x Front Panel Audio header (AAFP)
- 1 x S/PDIF out header
- 1 x 20-3pin System Panel header with Chassis intrude function
- 1 x SPI TPM header (14-1 pin)
- 1 x M.2 slot (key E)
- 1 x Thunderbolt 4 header

Special Features
ASUS 5X PROTECTION III
- ASUS DIGI+VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design:
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- Box Headers
AURA SYNC
- AURA RGB headers
- Addressable Gen 2 RGB headers

Software Features
ASUS Exclusive Software:
Armoury Crate
- AURA Creator
-AURA Sync
AI Suite 3
-Performance And Power Saving Utility
Turbo EVO
Digi+ VRM
EPU
Fan Xpert 2+
- EZ update
ASUS CPU-Z
DAEMON Tools
Norton Anti-virus software(Free Trial for 60 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS
128 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables:
- 2 x SATA 6Gb/s cables
Miscellaneous:
- 1 x M.2 Rubber Package
- 1 x IO Shield
- 1 x M.2 SSD screw package
- 1 x M.2 Key E screw package
Installation Media:
- 1 x Supporting DVD
Documentation:
-1 x User's manual
