Model Name
PRO B760M-A WIFI

CPU Support
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors

CPU Socket
LGA 1700

Chipset
Intel® B760 Chipset

Expansion Slots
2x PCIe 4.0 x16 slots
1x PCIe 3.0 x1 slot

Display Interface
Support 4K@60Hz as specified in HDMITM 2.1, DisplayPort 1.4
Requires Processor Graphics

Memory Support
4 DIMMs, Dual Channel DDR5-6800+MHz(OC)

Storage
2x M.2 Gen4 x4 64Gbps slots
4x SATA 6Gbps ports

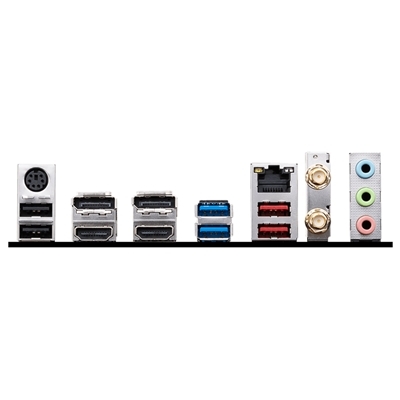

USB ports
2x USB 3.2 Gen 2 10Gbps (2 Type-A)
7x USB 3.2 Gen 1 5Gbps (6 Type-A + 1 Type-C)
6x USB 2.0

LAN
Realtek® RTL8125BG 2.5G LAN

WiFi / BT
Intel® Wi-Fi 6E
Bluetooth 5.3

Audio
8-Channel (7.1) HD Audio with Audio Boost
