Model Name

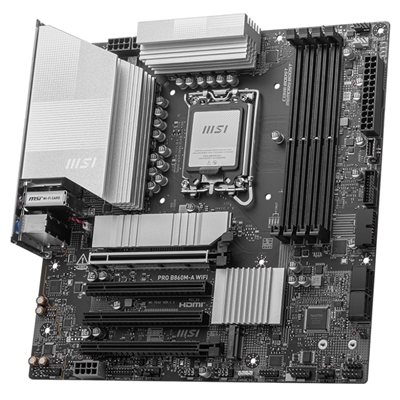

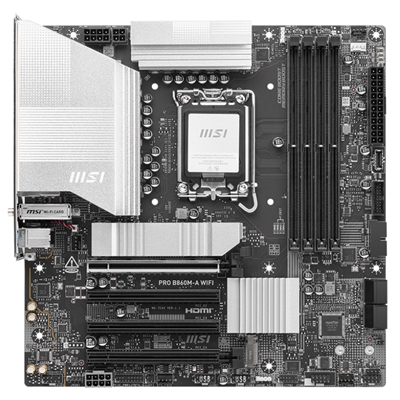

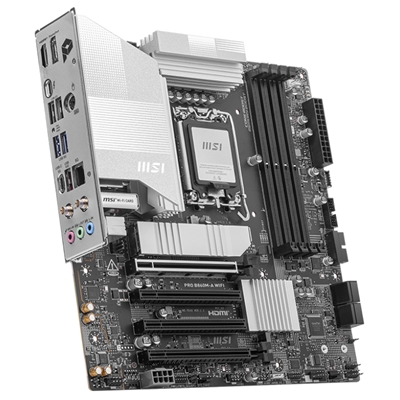

PRO B860M-A WIFI

CPU Support
Support Intel® Core™ Ultra Processors (Series 2)

CPU Socket
LGA 1851

Chipset
Intel® B860 Chipset

Expansion Slots
1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x16 slot
2 x PCIe 4.0 x1 slots

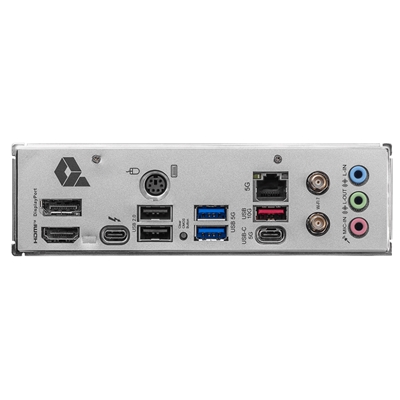

Display Interface
1 x Thunderbolt™ 4 (Type-C)
Support 4K@60Hz as specified in HDMI™ 2.1
DisplayPort 1.4
Requires Processor Graphics

Memory Support
4 DIMMs, Dual Channel DDR5 - 8800+ MT/s (OC)

Storage
1 x M.2 Gen5 x4 128Gbps slot
1 x M.2 Gen4 x4 64Gbps slot
1 x M.2 Gen4 x2 32Gbps slot
4 x SATA 6Gbps ports

Thunderbolt™ 4
1 x USB Type-C up to 40Gbps
Charging support up to 5V/3A , 15W

USB ports
2 x USB 10Gbps (1 Type-A + 1 Type-C)
7 x USB 5Gbps (6 Type-A + 1 Type-C)
6 x USB 2.0

LAN
Realtek® 8126 5G LAN

WiFi / Bluetooth
Intel® Wi-Fi 7
Bluetooth 5.4

Audio
8-Channel (7.1) HD Audio with Audio Boost
