Output
+3.3V (A): 15
+5V (A): 12
+12V1 (A): 15
-12V (A): 0.3
+5Vsb (A): 3.0
Max. combined power 12V (W): 300
Max. combined power 3.3V + 5V (W): 103
+12V2 (A): 15

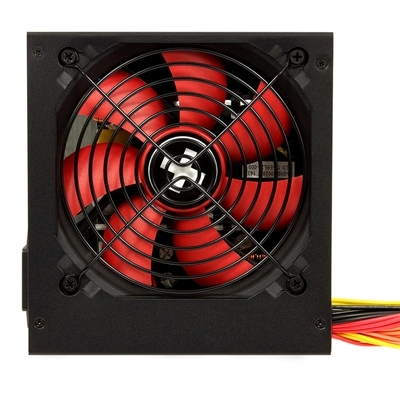

Fan / Cooling technology
Bearing technology: Hydro Bearing
Fan size (mm): 120
Protection
OCP (over current protection): -
OVP (over voltage protection): ?
UVP (under voltage protection): ?
SCP (short circuit protection): ?
OTP (over temperature protection): -
OPP (over power protection): ?
Eco / Efficiency
80PLUS certification: -
Efficiency (%) at 230V, 20% load: 85.38
Efficiency (%) at 230V, 50% load: 85.82
Efficiency (%) at 230V, 100% load: 82.67
Environmental directives
ErP: ?
WEEE: ?
RoHS: ?
Cable management / Connectors
Modular cable management: -
Cable length to mainboard (mm): 450
Cable length to first connector (mm): 400
Maximum cable length (mm): 700
Sleeved cables: -
No. of cables: 5
ATX-Motherboard (20+4-pin): 1
P4+4 (CPU): 1
P4 (CPU): -
PCI-E 6-pin (GPU): -
PCI-E 6+2-pin (GPU): 1
PATA 4-pin: 2
SATA 15-pin (HDD, Drives): 4
FDD (Floppy): -
Logistics data, RRP
Range: Performance C
Article number: XN042
EAN code: 4044953500220
Dimensions, package (L x W x H), (mm): 230 x 165 x 100
Gross weight, package (kg): 1.55
Pieces per packaging unit: 10
Dimensions, shipping box (L x W x H), (mm): 18.25
Gross weight, shipping box (kg): 510 x 350 x 250
