Model
AP-850G

Intel Form Factor
ATX12V

PFC Type
Active PFC

ATX Standard
ATX 3.0

Dimensions
150 x 150 x 86 mm

Efficiency
80Plus Gold

MTBF
>120,000 hrs @ 25°C

Protection Features
OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials
ROHS

AC Input Range
100-240Vac

DC Output Voltage
+3.3V +5V +12V -12V +5Vsb

Maximum Load
20A20A70.5A 0.3A 2.5A

Combined Load
110W 110W 846W 3.6W 12.5W

Total Output
850W

Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & connector side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 3

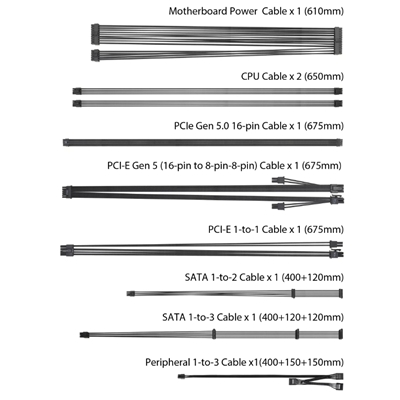

Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
User Manual x 1

Weight
1.502 kg (single PSU)
