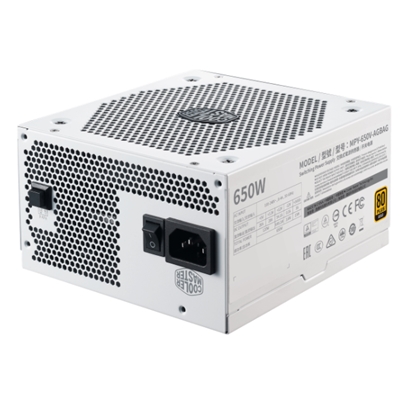

MODEL: MPY-650V-AGBAG
ATX VERSION: ATX 12V V2.52
PFC: ACTIVE PFC
INPUT VOLTAGE: 100-240V
INPUT CURRENT: 9-4.5A
INPUT FREQUENCY: 50-60HZ
DIMENSIONS (L X W X H): 160 X 150 X 86 MM
FAN SIZE: 135MM
FAN BEARING: FDB
FAN SPEED: 1500 RPM
NOISE LEVEL @ 20%: 0 DBA
NOISE LEVEL @ 50%: 18.3 DBA
NOISE LEVEL @ 100%: 32.1 DBA
EFFICIENCY: 90% @ TYPICAL LOAD
80 PLUS RATING: 80 PLUS GOLD
ERP 2014 LOT 3: YES
OPERATING TEMPERATURE: 0-50°C
POWER GOOD SIGNAL: 100 - 500 MS
HOLD UP TIME: 17MS
MTBF: >100,000 HOURS
PROTECTIONS: OVP, OPP, SCP, OCP, UVP, OTP
REGULATORY: CCC, CE, TUV-RH, RCM, EAC, CTUVUS, FCC, BSMI, KC, CB
ATX 24 PIN CONNECTORS: 1
EPS 4+4 PIN CONNECTORS: 1
EPS 8 PIN CONNECTOR: 1
SATA CONNECTORS: 8
PERIPHERAL 4 PIN CONNECTORS: 4
PCI-E 6+2 PIN CONNECTORS: 4
SERIES: V GOLD SERIES
80 PLUS: GOLD
MODULAR: FULL MODULAR
WATTAGE: 500 TO 750W
