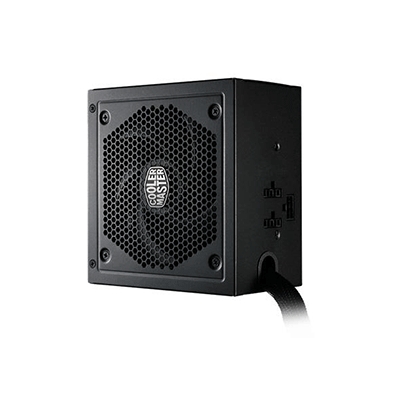

MasterWatt 750

The MasterWatt is an 80 Plus Bronze Power supply with an innovative semi-fanless mode.
Under 15% load, the MasterWatt fan remains idle, offering zero dBA.
When demand for power increases, a gradual fan curve provides measured cooling with little to no noise at any output level.
Dual forward / DC-to-DC topology are employed to keep the voltage stable in all conditions.
For increased performance, MasterWatt is equipped with 16 AWG power cables, which reduce resistance thereby increasing efficiency.

Features Semi-Fanless up till 15% load - Experience noise-free operation in normal PC loads under 15% output.
Dual Forward and DC-to-DC circuit design - The Dual Forward and DC-to-DC circuit design offers reliability and stability especially significant in +3.3V and +5V output.
5 years warranty - The MasterWatt comes with a 5 year warranty.
More Conductive PCI-e Cables - The MasterWatt uses 16AWG cables for PCI-e cables. It reduces the cable temperature and improves the efficiency.
80 PLUS Bronze Certified - The 80 PLUS Bronze certification means MasterWatt is independently tested with efficiency of 85%.
Durable LDB bearing - Silencio technology combines sealed LDB bearings with quiet fan blades delivering a long lifetime of quiet cooling.

Specifications
Model
MPX-7501-AMAAB

Type
ATX 12V V2.4

PFC
Active PFC

Operation Voltage
100-240Vac

Input Voltage
100-240Vac

Input Current
8-4A

Input Frequency
50-60Hz

Dimensions (L x B x H)
140 x 150 x 86mm

Fan size
120mm

Fan Bearing
LDB

Powergood Signal
100-500ms

Hold Up Time
16ms at 80% load

Efficiency
85% @ Typical

Load ErP 2013 Lot 6
Yes

MTBF
>100,000 hours

Operating Temperature
0~40°C

Protections
OCP / OVP / UVP / OPP / OTP / SCP

Regulatory
CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC,CB

Connectors
MB 24 pin 1x
CPU 12V 4+4Pin 1x
SATA 6x
Peripheral 4 Pin 2x
FDD Cable 4 Pin 1x
PCI-e 6+2 Pin 2x

AC INPUT
100-240Vac~ 8-4A 50-60Hz
DC OUTPUT
+3.3V +5V +12V -12V +5sb
20A 20A 37.5A 0.3A 3A

TOTAL POWER
120W 750W 3.6W 15W
750W

Net Weight
1.606 kg

Gross Weight
1.97 kg

Package Dimensions
266 x 194 x 112 mm

Carton Dimensions
582 x 279 x 218 mm

Unit / Carton
5 pcs
