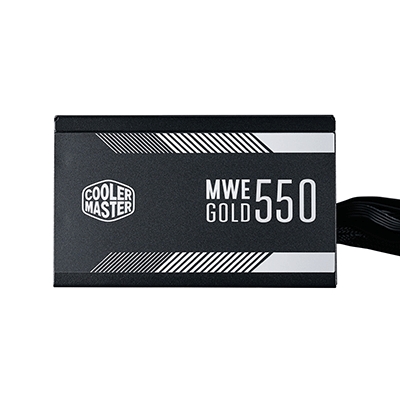

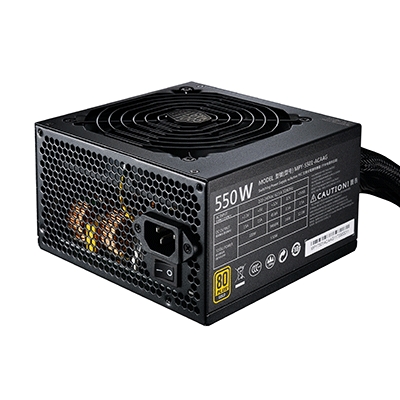

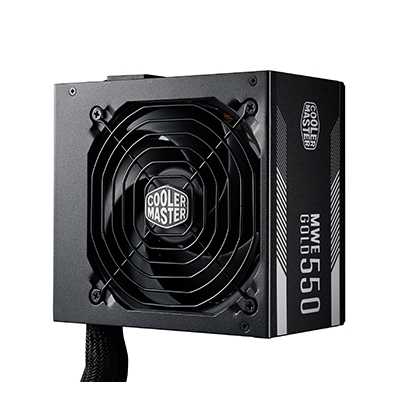

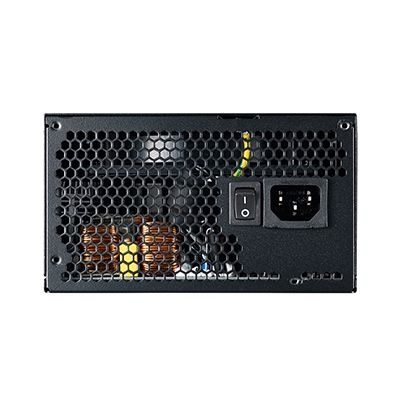

The MWE Gold offers a highly efficient, affordable power solution. Enjoy reliable 90% efficiency with an 80 PLUS gold certification. Cooler Master’s design techniques ensure improved efficiency while maintaining low temperatures and quiet operation. Heat resistant components maintain gold level performance even at increased temperatures up to 45°C. A near quiet Silencio fan with an exclusive LDB bearing reduces noise and lasts longer than standard bearings. Flat and flexible cables improve airflow by reducing cable bulk. Enjoy gold rated power at an affordable price. Be bold, power with gold

FEATURES
- 80 PLUS Gold Certified: The 80 PLUS Gold certification guarantees a typical efficiency of 90% or higher.
- Silent and Durable LDB Fan Bearing: Silencio technology combines sealed LDB bearings with quiet fan blades, delivering a long lifetime of quiet cooling.
- Proven Thermal Resistance: Engineered to operate at full performance in temperatures up to 45°C, providing reliability in even the hottest environments.
- Flat & Flexible Cables: The MWE Gold series adopts black flat cables for better and more flexible cable management, beneficial for airflow even in smaller cases.
- High Efficiency and Stable Output: The MWE Gold’s full-bridge design coupled with LLC, Synchronous, and DC to DC topology technologies offers reliable and stable Voltage outputs.

SPECIFICATIONS
Model
MPY-5501-ACAAG

Type
ATX 12V V2.31

PFC
Active PFC

Input Voltage
100-240V

Input Current
6.3A

Input Frequency
50/60Hz

Dimensions (L x B x H)
140 x 150 x 86mm

Fan size
120mm

Fan Bearing
LDB

Powergood Signal
100 - 500 ms

Hold Up Time
> 14 ms @ 100% load

Efficiency
90% Typically

ErP 2013 Lot 6
Yes

MTBF
>100,000 hours

Operating Temperature
0 - 45°C

Protections
OVP / OPP / UVP / SCP / OTP

Regulatory
CCC, to be continued

Connectors
MB 24 pin 1x
CPU 12V 4+4Pin 1x
SATA 8x
Peripheral 4 Pin 3x
FDD Cable 4 Pin 1x
PCI-e 6+2 Pin 2x

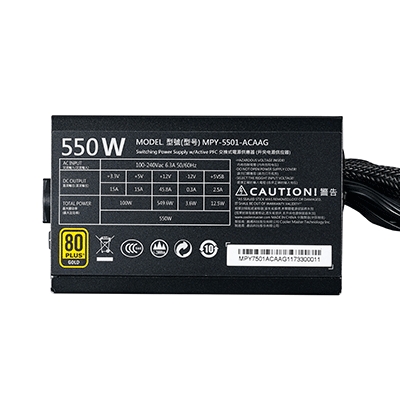

AC INPUT 100-240V~ 6.3A 50/60Hz
DC OUTPUT
+3.3V +5V +12V -12V +5sb
15A 15A 45.8A 0.3A 2.5A
TOTAL POWER
100W 549.6W 3.6W 12.5W
550W

Net Weight
2.07 kg

Gross Weight
2.35 kg

Package Dimensions
276 x 194 x 120 mm

Carton Dimensions
620 x 290 x 220 mm

Unit / Carton 5 pcs
