Product Name

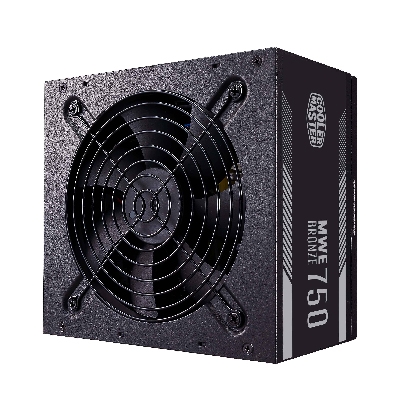

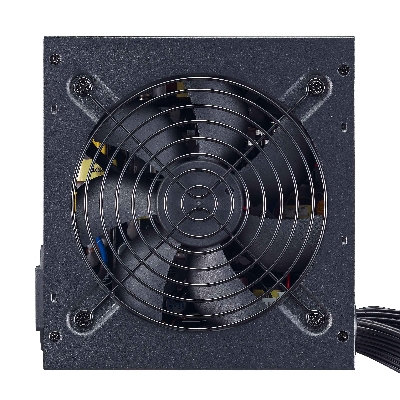

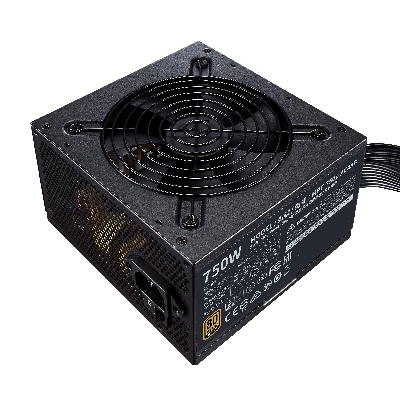

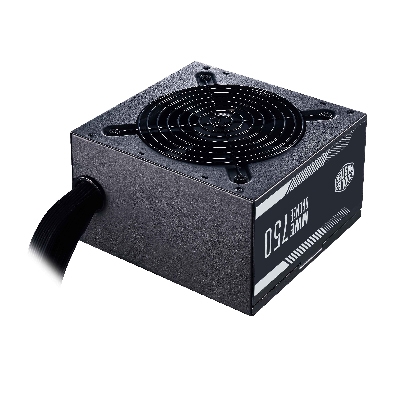

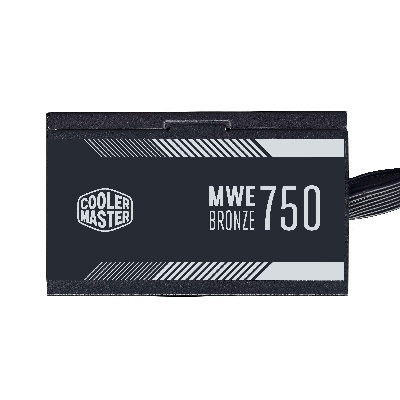

MWE 750 Bronze V2

Item Code
MPE-7501-ACAAB-EU

ATX Version
ATX 12V Ver. 2.52

PFC
Active PFC

Input Voltage
100 - 240V

Input Current
10 - 6A

Input Frequency
50 - 60Hz

Dimensions
(L x W x H) 140 x 150 x 86mm

Fan Size
120

Fan Bearing
HDB

Fan Speed
2400 RPM

Noise @ 20%
12.16dB-A

Noise @ 50%
17.9dB-A

Noise @ 100%
39.8dB-A

Efficiency
85% Typically

80 PLUS Rating
80 PLUS Bronze

ErP 2014 Lot 3
Yes

Operating Temperature
40°C

Power Good Signal
100 - 500 ms

Hold Up Time
>18ms at 100% full load@230Vac

MTBF
>100,000 hours

Protections
OVP / OPP / SCP / UVP / OTP

Regulatory
CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB

Connectors
ATX 24 Pin x1
EPS 4+4 Pin x1
EPS 8 Pin x1
SATA x8
Peripheral 4 Pin x4
PCI-e 6+2 Pin x4

Nett Weight
1.786 kg

Gross Weight
2.204 kg

Package Dimensions
260 x 190 x 110mm

EAN CODE
4719512081853

UPC CODE:
884102054341
