PFC
Active PFC

Input Frequency
50-60Hz

Operating Temperature
0-40°C

Operation Voltage
100-240Vac

ErP 2013 Lot 6
Yes

MB 20+4 Pin Connectors
1

FDD Cable 4 Pin Connectors
1

Power Good Signal
100 - 500 ms

MTBF
>100,000 Hours

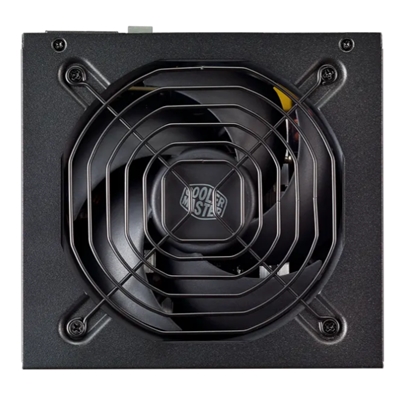

Fan Size
120mm

Fan Bearing
LDB

CPU 12V 4+4 Pin Connectors
1

Modular
Non Modular

ATX Version
ATX 12V V2.31

80 Plus Efficiency
Bronze

Efficiency
85% @ Typical Load

SATA Connectors
8

PCI-e 6+2 Pin Connectors
4

Peripheral 4 Pin Connectors
4

Input Voltage
100-240Vac

Series
MWE Bronze Series

Dimensions (L x W x H)
140 x 150 x 86 mm

Hold Up Time
16ms at 80% Load

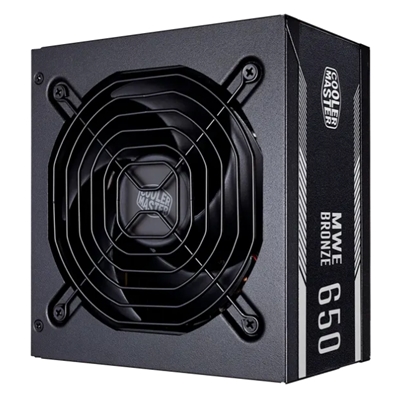

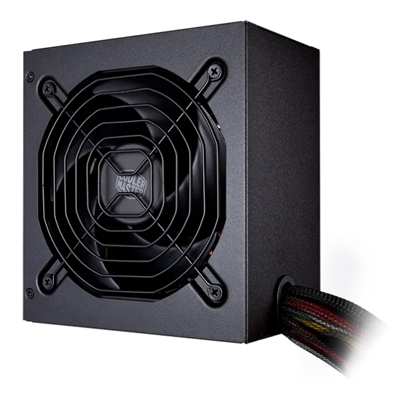

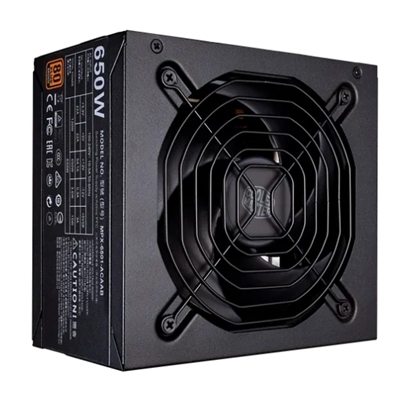

Product Name
MWE Bronze 650

Input Current
10-5A

Protections
OVP
OPP
SCP
UVP
OTP
OCP

Regulatory
CCC
CE
TUV-RH
RCM
EAC
cTUVus
FCC
BSMI
KC
