Efficiency Rating
80 PLUS Gold (up to 90%)

Modular
Yes (full modular)

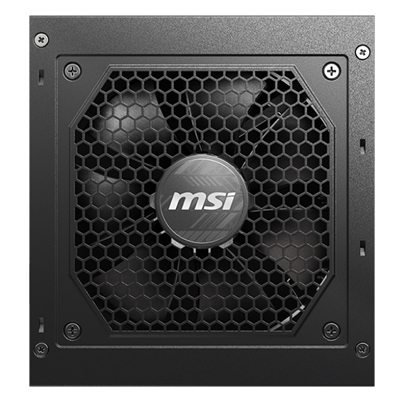

Fan Size
120 mm

Fan Bearing
Fluid Dynamic Bearing

Dimensions (DxWxH)
140 x 150 x 86 mm

PFC Type
Active PFC

Input Voltage Range
100~240 VAC

Power Watt
750W

Power Excursion
1500W (up to 200% of the PSU's rated power for 100μs)

Input Frequency Range
47-63Hz

Protection
OCP / OVP / OPP / OTP / SCP / UVP

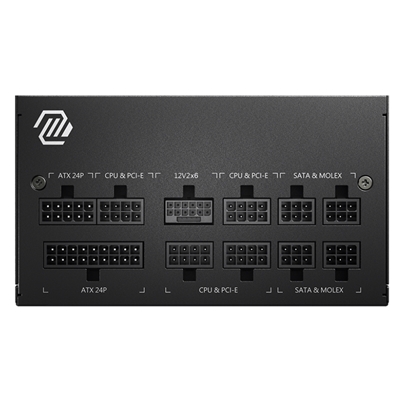

ATX (24 pin)
1

EPS (4+4 pin)
2

PCI-E 5.0 (16 pin)
1 (450W)

PCI-E (6+2 pin)
3

SATA (15 pin)
8

MOLEX (4 pin)
4

FDD (4 pin)
1
