SPECIFICHE TECNICHE:

True double-conversion, Microprocessor control optimizes reliability, Input power factor correction, Output power factor 0.9, Wide input voltage (110V - 300V), Converter mode available, ECO mode for energy saving, Adjustable charging current via LCD or software (1A~6A), Generator compatible, Smart SNMP works well with either USB or RS-233 together, Comprehensive LCD display allows easy monitoring and access of UPS status

Compatibilità certificata con i prodotti SYNOLOGY! Griglia consultabile a questo link: Compatibility List - Synology Inc.

• CAPACITY: 1000VA / 900W, Single phase with ground
• INPUT – Nominal Voltage: 110 / 115 / 120 / 127Vac or 208 / 220 / 230 / 240Vac
• INPUT - Voltage Range: 60-145Vac or 120-300Vac at 50% load, 90-145Vac or 180-300Vac at 100% load
• INPUT - Frequency Range: 40~70Hz
• INPUT – Power Factor: ? 0.99 @ Nominal Voltage (100% load)
• OUTPUT – Output Voltage: 110 / 115 / 120 / 127Vac or 208 / 220 / 230 / 240Vac
• OUTPUT - Voltage Regulation: ±1%
• OUTPUT - Frequency Range (Synchronized Range): 47~53Hz or 57~63Hz
• OUTPUT - Frequency Range (Batt. Mode): 50Hz ± 0.25Hz or 60Hz ± 0.3Hz
• OUTPUT - Inverter Crest Ratio: 3:1
• OUTPUT - Harmonic Distortion: ? 3% THD (Linear Load), ? 6% THD (Non-linear Load)
• OUTPUT - Transfer Time, AC Mode to Battery Mode: Zero
• OUTPUT - Transfer Time, Inverter to Bypass: 4 ms (Typical)
• OUTPUT - Waveform (Batt. Mode): Pure Sinewave
• EFFICIENCY – AC Mode: 88%
• EFFICIENCY – Battery Mode: 83%
• BATTERY - Type & Number: 12V / 9 Ah
• BATTERY – Numbers in string: 2
• BATTERY - Typical Recharge Time: 4 hours recover to 90% capacity
• BATTERY – Charging Current (max.): 1.0 A
• BATTERY – Charging Voltage: 27.4Vdc ± 1%
• INDICATORS – LCD Panel: Load level, Battery level, AC mode, Battery mode, Bypass mode and Fault indicators
• ALARM - Battery mode: Beeps every 4 seconds
• ALARM - Low Battery: Beeps every second
• ALARM - Overload: Beeps twice every second
• ALARM - Fault: Continuously beeping
• PHYSICAL - Dimension, D X W X H (mm): 310 x 438 x 88
• PHYSICAL - Net Weight (kgs): 12
• ENVIRONMENT - Humidity: 20-90% RH @ 0-40°C (non-condensing)
• ENVIRONMENT - Noise Level: Less than 50dBA @ 1 Meter

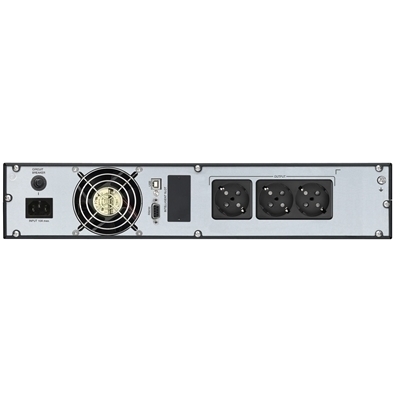

• OUTPUT SOCKETS: USB RS-232 3*SCHUKO
