Mechanical
Dimensions: 288 x 99 x 280.5 mm (11.3 x 3.9 x 11")
Weight: 7.85 kg (17.3 lb)
Enclosure Material: Polycarbonate and acrylonitrile butadiene styrene blend
Form Factor: Desktop
Weatherproofing: IP20

Hardware
Management: Ethernet
Networking Interface:
- (1) 100/10 MbE port for network connection
- (2) GbE ports for surge in/out

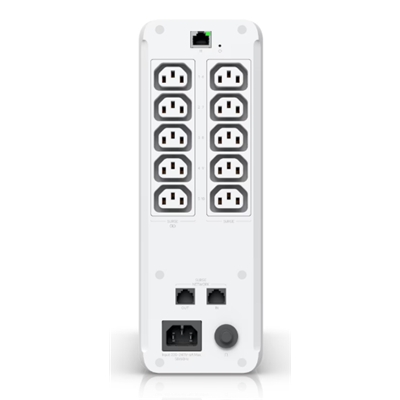

Power:
- (1) OVC II AC in: C14 socket, 1.8 m (5.9 ft) removable power cord
- (5) Battery backup/surge protection: C13
- (5) Surge protection: C13
Capacity: 1,000VA/600W
Type: Line interactive
Input Voltage Range: 170–280V AC
Power Method: (1) TN system, 220–240V AC, 6A Max., 50/60 Hz
Nominal Input Voltage: 230V AC
Output Voltage: 220–240V AC
Nominal Output Voltage: 230V AC
Frequency Range: AC mode: 50/60 Hz ±5 Hz (Auto sensing), Battery mode: 50 Hz ±1 Hz
AC Voltage Regulation: ±10% (Battery mode)
Transfer Time: 6 ms typical; 10 ms max. (Battery mode)
Wave Form: Simulated sine wave (Battery mode)
Battery Type: (1) Lead Acid 12V, 9Ah
Runtime: Full load: 2 min, Half load: 7 min
Battery Charging Time: 6-8 hours recovery to 90% capacity
Overload at On-Line Mode: 110% 5 min go to fault; 120% go to fault immediately
Overload at Battery Mode: 110% shutdown in 5 sec; 120% shutdown immediately
Short Circuit Protection at On-Line Mode: Breaker, 250V AC, 10A
Output Short-Circuit Current: Ipeak 401.9A, Irms 160.7A
Buttons:
- (1) Power
- (1) Factory reset
LEDs: Status
Off: device not turned on
Flashing white: initializing / factory default
Steady white: waiting for adoption
Steady blue: device adoption and working
Flashing blue: battery mode
Alternating white/blue: firmware upgrading
Rapid flashing blue: locate
Steady red: warning
Flashing red: low battery
Battery Indicator:
All off: 0%
(1) Steady blue: battery 1–19%
(2) Steady blue: battery 20–39%
(3) Steady blue: battery 40–59%
(4) Steady blue: battery 60–79%
(5) Steady blue: battery 80–100%
Operating Altitude: 3,000 m (1.9 mi)
Operating Environment: Pollution Degree 2
Ambient Storage Temperature: -20 to 50° C (-4 to 122° F)
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 0 to 95% noncondensing
Certifications: CE, IEC 62040-1
