Power Rating(VA)
700
Power Rating(W)
360
INPUT
Voltage: 165-275V
Frequency: 50Hz±5%
OUTPUT
Voltage: 220V(±10%) [AC] / 220V(±7%) [INV]
Frequency: 50Hz (±1%)
AVR Built-in
Waveform True SineWave
TRANSFER
Less than 2-6 ms (typical),
Line/Battery
10 Max
EFFICIENCY
Total Effi ciency Over 80%
BATTERY
Voltage 12VDC
Capacity 12V/7.2Ah
Quantity 1
Recharge Time
6-8 hours to (90%)
Type Sealed Maintenance Free Lead Acid VRLA Type
INDICATORS (LCD Display)
Input Voltage, Output Voltage, Load Level Indicator, Overload, Utility
Normal, Backup, Battery Low and Battery Fault conditions
PROTECTION
Overload AC Buzzer continuously alarms then UPS shuts down after
10 seconds (>110%)
Overload Inverter UPS shuts down after 10 seconds (>110%)
Short Circuit INV Input Fuse & Electric Circuit
Short Circuit AC Electric Circuit
Battery Over-drain Two stages: Controlled Battery Low Warning &
Cut Off
Modem RJ11
Spike Suppression Meets EN61000-4-5
Noise Suppression Meets EN50991-1
ALARM
Battery Mode (sound every 10 seconds)
Low Battery (sound every seconds)
OverLoad (sound every 0.5 seconds)
Battery Replacement Alarm (sound every 2seconds)
Fault (continuously sounding)
CONNECTIONS
Output 3xIEC (Battery Power Supplied)
Computer USB
Backup Time
10 to 30 mins for typical PC Load
MECHANICAL
Dimensions (WxHxD):
100 x 145 x 328 mm
Net Weight (with Battery): 6 Kg
ENVIRONMENTS
Temperature 0°-40° C
Humidity 0-95% (non-condensing)
Package Contents

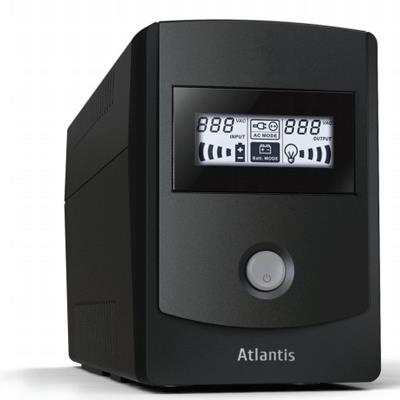

• HostPower Line Interactive SineWave UPS
• 2 x IEC cables, 1x USB cable
• Fuse
• Manual (Italian, English and French)
• Warranty and WEEE Instructions
CERTIFICATION
CE
