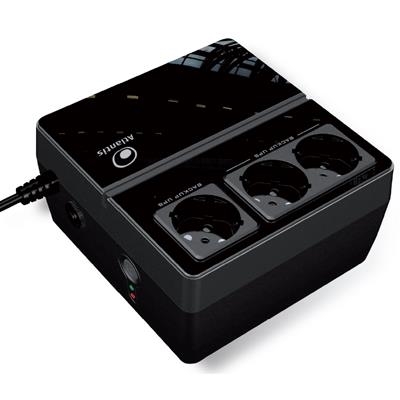

Model: A03-PS700
Power Rating (VA): 700
Power Rating (W): 300

INPUT
Voltage: 180-270V
Frequency: 50Hz±5%

OUTPUT
Voltage: 220V(±20%) [AC] / 220V(±10%) [INV]
Frequency: 50Hz (±1%)
Waveform Simulated SineWave

TRANSFER Line/Battery
Less than 2-6 ms (typical)

EFFICIENCY
Total Effi ciency Over 80%

BATTERY
Voltage 12VDC
Capacity 12V/5.0Ah
Quantity 1
Recharge Time 8 hours to (90%)
Type Sealed Maintenance Free Lead Acid VRLA Type

INDICATORS(LED Display)
AC Mode (Green lighting)
Battery mode (Green fl ashing every 10 seconds)
Low Battery (Green fl ashing every seconds and RED lighting)
Fault (Red lighting)

PROTECTION
Overload AC Buzzer continuously alarms then UPS shuts down after
10 seconds (>110%)
Overload Inverter UPS shuts down after 10 seconds (>110%)
Short Circuit INV Input Fuse & Electric Circuit
Short Circuit AC Electric Circuit
Battery Over-drain Two stages: Controlled Battery Low Warning &
Cut Off
Modem RJ11
Spike Suppression Meets EN61000-4-5
Noise Suppression Meets EN50991-1

ALARM
Battery Mode (sound every 10 seconds)
Low Battery (sound every seconds)
OverLoad (continuously sounding)
Fault (continuously sounding)

CONNECTIONS
Output 2xIEC (Battery Power Supplied)
Backup Time
10 to 30 mins for typical PC Load

MECHANICAL
Dimensions (WxHxD): 166 x 87 x 161 mm
Net Weight(with Battery): 3 Kg

ENVIRONMENTS
Temperature 0°-40° C
Humidity 0-95% (non-condensing)
Package Contents
• OnePower Smart UPS
• Manual (Italian, English and French)
• Warranty and WEEE Instructions

CERTIFICATION
CE
