Product Name

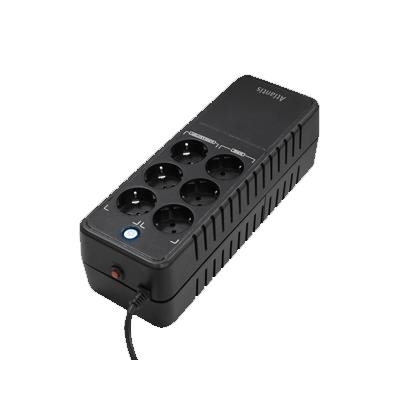

OnePower 1000

Power Rating (VA) 1000
Power Rating (W) 500

Input
• Voltage:162-290V
• Frequency:50Hz±5%

Output
• Voltage: 220V(±20%) [AC] / 220V(±8%) [Battery]
• Frequency: 50Hz (±1%)
• Waveform: Simulated SineWave

Transfer Line/Battery
• 4 ms (typical)

Efficiency
• 94%

Battery
• Voltage: 12VDC
• Capacity: 12V/5.6Ah
• Quantity: 1
• Recharge Time: 6-8 hours to (90%)
• Type: Sealed Maintenance Free Lead Acid VRLA Type

Indicators (LED)
Utility Normal, Backup, and Battery/Fault conditions

Protection
• Overload AC Buzzer continuously alarms
• Overload Inverter Buzzer continuously alarms
• Short Circuit: Electric Circuit
• Short Circuit AC Electric Circuit
• Short Circuit INV: Electric Circuit
• Battery Over-drain Two stages: Controlled Battery Low Warning & Cut Off
• Spike Suppression
• Noise Suppression

Connections
• Output: 3x Schuko (Surge) + 3x Schuko (Battery Power Supplied)

BackUp Time
10 to 30 mins for typical PC Load

Certifications
CE (EMC, Safety))

Dimensions (WxHxD)
108 x 90 x 300 mm

Net Weight (with Battery)
2.9 Kg (with Battery)

Temperature Range
0°C ~ 40°C

Humidity
20% ~ 95% (non Condensing)

Certification CE
