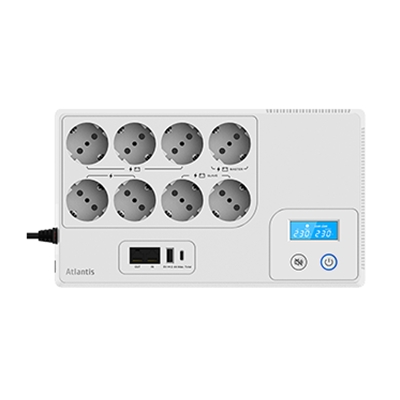

A03-PS2100U
Power Rating (VA): 1000
Power Rating (W): 600
Input:
- Voltage: 162-290VAC
- Frequency: 50Hz±5%
Output:
- Voltage: 220V(±20%) [AC] / 220V(±8%) [Battery]
- Frequency: 50Hz (±1%)
Waveform Simulated SineWave
Transfer Line/Battery: 4 ms (typical)
Efficiency: Total Efficiency Over 97.45% (Full Load)/ 96.14% (Half Load)
Battery:
- Voltage: 12VDC
- Capacity: 12V/9.0Ah
- Quantity: 1
- Recharge Time: 4 hours to (90%)
- Type: Sealed Maintenance Free Lead Acid VRLA Type
Indicators:
- [LCD]: Utility Normal, Backup, Battery Load, Input Voltage, Output Voltage, Load,
- Master-Slave Function
Backup Time:
- 60W / 100VA up to 30m
- 100W / 1600VA: 19m
- 150W / 250VA: 12m
- 300W / 500VA: 3m
- 450W / 750VA: 1m
- 600W / 1000VA: Few Seconds
Advanced Features: Master-Slave
Alarms:
- Battery Mode (sound every 10 seconds)
- Low Battery (sound every 1 seconds)
- OverLoad (sound every 0.5 seconds)
- Fault (continuously sounding)
Protection:
- Overload AC (beep twice a sec)
- Overload Inverter (beep twice a sec)
- Short Circuit INV ICB & Electric Circuit
- Short Circuit AC Electric Circuit
- Battery Over-drain Two stages: Controlled Battery Low Warning & Cut Off
- Spike Suppression
Connections
- Output 6xSchuko(Battery supplied + Surge Protection) |
- Output 2 x Schuko (Surge Protection)|
- Computer USB (HID) and RJ45/11 (Gigabit)
- USB Charger (1x USB Type C, 1 x USB Type A) max 5V@2,4A
Active Fan: Fanless
Noise Level: Less than 40dB
Dimensions (WxHxD): 166 x 118 x 288 mm
Net Weight 5,8 Kg (with Battery)
Temperature: 0°-40° C
Humidity: 0-95% (non-condensing)
