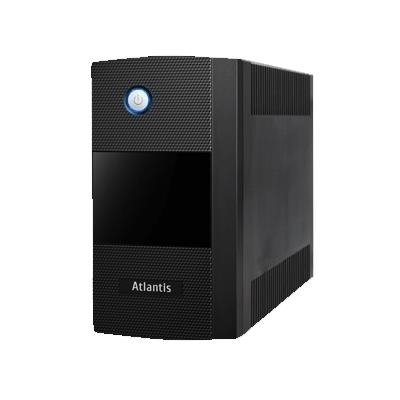

Product Name
OnePower S1000LE

Product Code
A03-S1000LE

Power Rating (VA)
1200

Power Rating (W)
600

Input
• Voltage: 162-290V
• Frequency: 50Hz±5%

Output
• Voltage: 190-245 [AC/AVR] / 220V(±5%) [Battery]
• Frequency: 50Hz (±1%)
• AVR: Built-in
• Waveform: Simulated SineWave

TRANSFER Line/Battery
Less than 4 ms (typical)

Efficiency
• Normal: 94%
• Boost: 91%
• Buck: 92%

Battery
• Voltage: 24VDC
• Capacity: 12V/4.5Ah
• Quantity: 2
• Recharge Time: 6-8 hours to (90%)
• Type: Sealed Maintenance Free Lead Acid VRLA Type

Indicators
LED: Utility Normal, Backup, and Battery/Fault conditions

Protection
• Overload AC Buzzer continuously alarms
• Overload Inverter Buzzer continuously alarms
• Short Circuit: Electric Circuit
• Short Circuit AC Electric Circuit
• Battery Over-drain Two stages: Controlled Battery Low Warning & Cut Off
• Spike Suppression

Connections
• Output 3x Schuko (Battery Power Supplied), Computer USB
• Computer USB

BackUp Time
10 to 30 mins for typical PC Load

Certifications
CE

Dimensions (WxHxD)
100 x 178 x 298 mm

Net Weight (with Battery)
6,9 Kg (with Battery)

Temperature Range
0°C ~ 40°C

Humidity
0% ~ 90 (non Condensing)
