Power Rating (VA): 1200
Power Rating (W): 720
Input:
- Voltage: 140-300V
- Frequency: 50Hz±5%
Output:
- Voltage: 203-262 [AC/AVR] / 230V(±10%) [Battery]
- Frequency: 50Hz (±1%)
- Advanced AVR: Built-in (2 Boost, 1 Buck)
- Waveform: Pure SineWave
Transfer: 4 ms typical, max 10ms
Efficiency: Total Efficiency Over 85%
Battery:
- Voltage: 24VDC
- Capacity: 12V/7.0Ah
- Quantity: 2
- Recharge Time: 4 hours to (90%)
- Type: Sealed Maintenance Free Lead Acid VRLA Type
Indicators LCD Display:
- Utility Normal, Backup, Battery Load, Input Voltage, Output Voltage,
- Load and Battery / Fault conditions
Protection:
- Overload AC (beep twice a sec)
- Overload Inverter (beep twice a sec)
- Short Circuit INV ICB & Electric Circuit
- Short Circuit AC Electric Circuit
- Battery Over-drain Two stages: Controlled Battery Low Warning & Cut Off
- Spike Suppression
- Noise Suppression
Alarm:
- Battery Mode (sound every 30 seconds)
- Low Battery (sound every 2 seconds)
- OverLoad (sound every 0.5 seconds)
- Battery Replacement Alarm (sound every 2 seconds)
- Fault (continuously sounding)

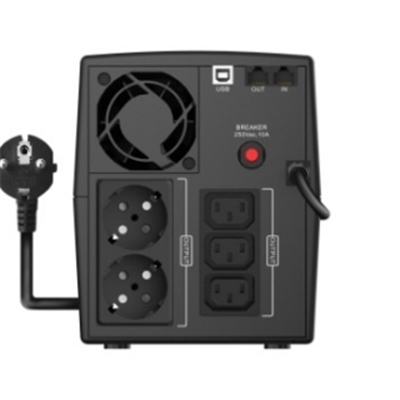

Connections:
- Output 2xSchuko
- 3xIEC
- Computer USB (HID)
- RJ45/11
Active fan: Yes (2 speeds)
Noise level: Less than 40dB
Dimensions (WxHxD): 148 x 178 x 298 mm
Net Weight 9,3 Kg (with Battery)
Temperature: 0°-40° C
Humidity: 0-95% (non-condensing)
