Power Rating (VA)
1500

Power Rating (W)
1050

Input (Low Line Transfer)
80VAC-300VAC(load <=30%±5%)
120VAC-300VAC(load <=60%±5%)
140VAC-300VAC(load <=80%±5%)
160VAC-300VAC(load <=100%±5%)

Frequency Range
40Hz to 70Hz

Power Factor
>0,99 (Normal Voltage)

Output
Voltage: 208/220/230/240VAC
AC Voltage Regulation: ±1%
Frequency Range: 50Hz (±0.5%) or 60Hz (±0.5%)
Waveform: Pure SineWave
Crest Ratio: 3:1 (Max)
Harmonic Distortion (THDU): <3% THD (liner Load) /<5% THD (Non liner Load)

Transfer
AC->Battery: Zero
INV->ByPass: Less than 4ms (typical)

Waveform (Batt. Mode)
Pure Sinewave

Efficency
AC Mode = 89%  |  Battery = 85%  |  ECO = 97%

Battery
Voltage: 36VDC
Capacity: 12V/9.0Ah
Quantity: 3
Recharge Time: 4 hours to (90%)
Type: Sealed Maintenance Free Lead Acid VRLA Type
Design: Swappable battery design
Charging Voltage: 41,1VDC ±1%
Charging I: 1,5A Max

Indicators (Display LCD)
UPS status, Load level, Battery level, Input/Output/battery info, Discharge
time and Fault indicators

Protection

105%110%Overload AC >130%  Overload Warning UPS transfers to ByPass after 3  seconds
105%110%Overload AC >130% Overload Warning shut down after  3 seconds
110%120%ByPass >130% Overload Warning UPS shut down after 1 minute
Overload Inverter (>100%)
Short Circuit INV: Electric Circuit
Short Circuit AC: ICB & Electric Circuit
Battery Over-drain Two stages: Controlled Battery Low Warning & Cut Off
High Surge Level Immunity(>7KV)

Advanced
Fan detect protection and Fan speed control
ECO mode

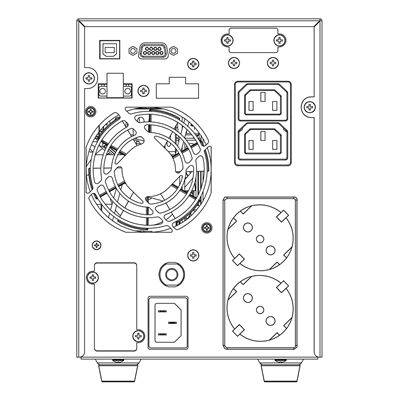

Connections
Output 2xIEC 320 C13 (Battery  Power Supplied) | 2xSCHUKO (Battery  Power Supplied) | RS232 and USB(HID) | Intelligent Slot for SNMP Card|  EPO/ROO

Backup Time (Min)
1050w up to 4:30m
787w up to 8:00m
525w up to 12:00m
262w up to 30m

Dimension (WxHxD)
151 x 225 x 394 mm

Weight
16,5 Kg (with battery)

Environments
Temperature 0°-40° C  /  Humidity 20-90% (non-condensing)

Noise Level
Ultra Low Noise
1m Front: Less then 25.6 dBA (Line Mode, full Load)
1m Left Side: Less then 27.5 dBA (Line Mode, full Load)
1m Right Side: Less then 27.6 dBA (Line Mode, full Load)
1m Rear Side: Less then 26.4 dBA (Line Mode, full Load)

Certifications
CE (EMC, Safety)
