General
Product Dimensions (W × H × D): 254.9 mm × 142.5 mm × 192.5 mm
Package Dimensions (W × H × D): 277 mm × 250 mm × 55 mm
Net Weight: 0.290kg
Gross Weight: 0.619kg
Packing List:
1200Mbps Wi-Fi5 Router x 1
Power Supply Adaptor × 1
CAT5e Network Cable × 1
Quick Start Guide × 1
Regulatory Compliance and Safety Information × 1
Packing Method: Single pack
Working Temperature: 0 ? to 40 ? (32 ? to 104 ?)
Working Humidity: 10% to 90% RH non-condensing
Storage Humidity: 5% to 95% RH non-condensing
Storage Temperature: -40 ? to 70 ? (-40 ? to 158 ?)
Installation Mode: Desk-Mounted, Wall-Mounted

Wireless parameter
Wireless Standard:
- IEEE 802.11a/n/ac @5GHz
- IEEE 802.11b/g/n @2.4GHz
Working Frequency Band: 2.4 GHz,5 GHz
Wireless Range:
Up to 1184 ft²/110 m² (Recommend coverage for home use, actual Wi-Fi range varies depending on the layout and wall materials)
Max. Connections: 128
Recommended Connections: 40
Transmitting Power: CE:
<20 dBm (2.4GHz)
<23 dBm (5GHz)
Wireless Features: Dual Band Supported, MU-MIMO Supported, Beamforming Supported
Antenna: 4 high gain antennas
Antenna Gain: 5 dBi

Receiving Sensitivity:
5GHz:
-88.5dBm@11AC80-MCS0
-63.5dBm@11AC80-MCS9
2.4GHz:
-91dBm@HT40-MCS0
-72dBm@HT40-MCS7

Max. Wi-Fi Speed:
≤ 1200 Mbps
5GHz: 866Mbps
2.4GHz: 300Mbps

Hardware parameter

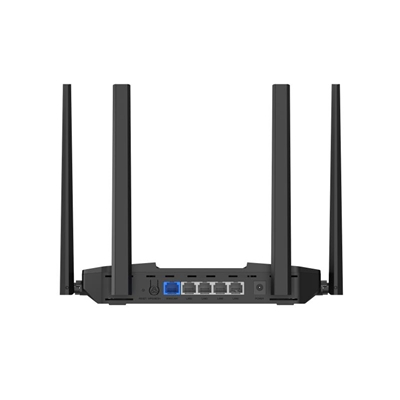

Network Interface:
1 × 10/100/1000 Mbps Adaptive WAN Port
4 × 10/100/1000 Mbps Adaptive LAN Ports
LED Indicator:
Power
WAN
LAN
2.4 GHz Wi-Fi
5 GHz Wi-Fi
WPS/MESH
Button: Reset button, WPS/MESH Button
RAM: 128MB DDR2
ROM: 128MB NAND
Power Supply Method: Power Supply Adapter
Power Specifications: DC 12 V, 1 A
Max. Power Consumption: ≤11 W

Software function
Operating Mode:
- Router Mode
- Wireless Extender Mode
- Access Point Mode
WAN Mode:
- DHCP
- Static IP
- PPPOE
DHCP:
- DHCP Client List
- DHCP Server
IP Version:
- IPv4
- IPv6
Parental Control: Speed Limit, Internet Access Period, Filter URL, Custom Profiles
Firewall:
- Forbid TCP SYNC flood attack
- Forbid ICMP flood attack
DDNS: Oray
VPN:
- PPTP Client
- L2TP Client
NAT Forwarding:
- Port Mapping
- DMZ
- UPnP
Altro: VLAN/IPTV, WIFI Optimization, Quick Diagnosis
MESH: Hikvision Mesh
Security Mode: WPA2-PSK, WPA/WPA2-PSK supported
Security Mechanism:
- Support fast and secure WPS connection
- Support hiding wireless network name
- Support controlling terminal network connection
- Support firewalls
- Login Authentication
Management Method:
- Web Control: PC, mobile
- App Control: HPP, HC
- TR069 (TR098/TR181)
Upgrade:
- Web Upgarde
- App Cloud Upgrade
- Auto Upgrade
System Log: System log
Roaming: 802.11k/v
