General
Product Dimensions (W × H × D): 97.58mmx96.26mmx155.19mm
Package Dimensions (W × H × D): 282mm×128mm×169mm
Net Weight: 0.76kg
Gross Weight: 1.23kg
Packing list:
- 1200Mbps Wi-Fi5 Router x 2
- Power Supply Adaptor × 2
- CAT5e Network Cable × 2
- Quick Start Guide × 1
- Regulatory Compliance and Safety Information × 1
- Product Flyer x 1
Packing Method: 2 pack
Working Temperature: 0 ? to 40 ? (32 ? to 104 ? )
Working Humidity: 10% to 90% RH non-condensing
Storage Temperature: -40 ? to 70 ? (-40 ? to 158 ? )
Storage Humidity: 5% to 95% RH non-condensing
Installation Mode: Desk-Mounted

Wireless parameter
Wireless Standard: IEEE 802.11a/n/ac @5GHz, IEEE 802.11b/g/n @2.4GHz
Working Frequency Band: 2.4 GHz, 5 GHz
Wireless Range: up to 2400 ft²/220?(Recommend coverage for home use, actual Wi-Fi range varies depending on the layout and wall materials)
Max. Connections: 256
Recommended Connections:
- 1 pack:40
- 2 pack:80
Transmitting Power:
CE:
<20 dBm(2.4GHz)
<23 dBm(5GHz)
Wireless Features: Dual Band Supported, MU-MIMO Supported, Beamforming Supported
Antenna: 4 high gain antennas
Antenna Gain: 5 dBi

Receiving sensitivity
5GHz: -88dBm@11AC80-MCS0, -64dBm@11AC80-MCS9
2.4GHz: -89.5dBm@HT40-MCS0, -70.5dBm@HT40-MCS7

Max. wi-fi speed
≤ 1200 Mbps
5GHz: 866Mbps
2.4GHz: 300Mbps

Hardware parameter
Network Interface:

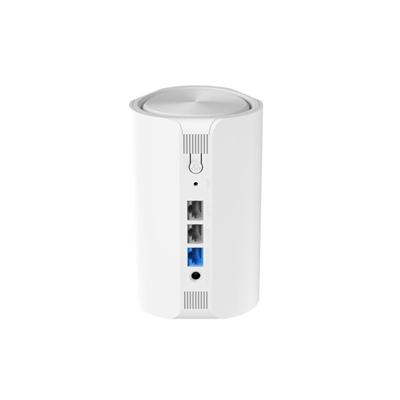

- 1 × 10/100/1000 Mbps WAN Port
- 2 × 10/100/1000 Mbps LAN Ports
LED Indicator: Power, Internet
Button: Reset button, WPS/MESH Button
RAM: 128MB DDR2
ROM: 128MB NAND
Power Supply Method: Power Supply Adapter
Power Specifications: DC 12 V, 1 A
Max. Power Consumption: ≤12 W

Software function
Operating Mode:
- Router Mode
- Wireless Extender Mode_
- Access Point Mode
WAN Mode: DHCP, Static IP, PPPOE
DHCP: DHCP Client List, DHCP Server
IP Version: IPv4, IPv6
Parental Control: Speed Limit, Internet Access Period, Filter URL, Custom Profiles

Firewall
Forbid TCP SYNC flood attack
Forbid ICMP flood attack

DDNS
Oray

VPN
PPTP Client
L2TP Client

Nat forwarding
Port Mapping
DMZ
UPnP

Others
VLAN/IPTV, WIFI Optimization, Quick Diagnosis
MESH: Hikvision Mesh

Security mode
WPA2-PSK, WPA/WPA2-PSK supported

Security mechanism
Support fast and secure WPS connection
Support hiding wireless network name
Support controlling terminal network connection
Support firewalls
Login authentication

Management method
Web Control: PC, mobile
App Control: HPP, HC
TR069(TR098/TR181)

Upgrade
Web Upgarde
App Cloud Upgrade
Auto Upgrade

System log
System log

Roaming
802.11k/v
