  ALLARM ATLANTIS KIT BASE A13-A750GLE-ST VERS.LITE KIT CORDLESS CENTR.GSM +2 SENS.APERTURA +1 SENS.MOVIM. +2 RADIOCOM. FINO:31/12 - cod. 47.8221 - A13-A750GLE-ST - AC computer - §§§ALLARM ATLANTIS KIT BASE A13-A750GLE-ST VERS.LITE KIT CORDLESS CENTR.GSM +2 SENS.APERTURA +1 SENS.MOVIM. +2 RADIOCOM. FINO:31/12 - cod. 47.8221 - cod. produttore: A13-A750GLE-ST

Product Name

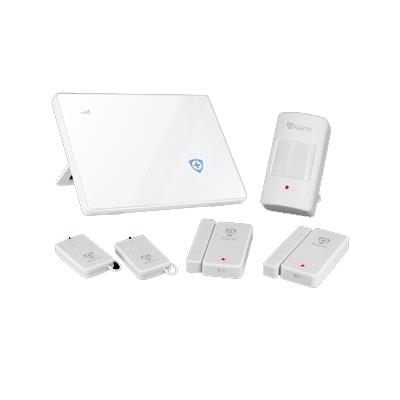

+Alarm A750 LITE GSM Alarm Kit

Code
A13-A750GLE-ST

A750 GSM Central Unit Specifications
• Wireless range: 100 meter, free air
• CPU: ARM7 Cortex™-M3 72MHz
• Internal Flash: STM32F103VCT6 256K
• External Flash: 64M
• Working voltage and current: 5V/2A
• Transmission Frequency: 433 MHz±0.5MHz
• GSM Mode: 850/900/1800/1900 MHz quad-band
• Numbers of supported sensors: 99 Sensors
• Battery Life: 12 hours
• Access level of users: Admin, User
• Event log: Latest 60 logs
• Managing & Setting: SMS, App (iOS/Android App.), PC Client
• Updating, managing and programming: By PC (Windows 7/8/10)
• Certifications: CE


A750 Volumetric Sensor (PIR) Specifications
• Transmission Frequency: 433,29 MHz
• Coverage: 100 meter, free air
• Battery: 2 x AA Battery (1.5V)
• Standby/Working Current: 60µA / 22mA
• Angle: 110°
• Distance: Up to 9m
• Certifications: CE
• System Requirements: +Alarm A750 System
• Power Consumption: Up to 66mW
• Dimensions: 100 x 555 x 40,5 mm
• Weight: 130g (without battery)
• Temperature Range: Operation: 0°C ~ 35°C Storage: -10°C ~ 60°C
• Humidity: 10% ~ 85°C (non Condensing)


A750 Door/Window Specifications
• Transmission Frequency: 433,29 MHz
• Coverage: 100 meter, free air
• Battery: 1 x AAA Battery (1.5V)
• Standby/Working Current: 9.5µA~11µA / 55~65mA
• Certifications: CE
• System Requirements: +Alarm A750 System
• Power Consumption: Up to 97,5mW
• Dimensions: 80 x 38.5 x 13.5 mm (Transmitter) 80 x 15 x 13.5 mm (Magnetic)
• Weight: 35,5g (without battery)
• Temperature Range: Operation: 0°C ~ 35°C Storage: -10°C ~ 60°C
• Humidity: 10% ~ 85°C (non Condensing)


A750 Remote Control Specifications
• Transmission Frequency: 433,29 MHz
• Coverage: 100 meter, free air
• Battery: 2 x CR2016Ly (3V)
• Standby/Working Current: 0A / 7.5mA
• Certifications: CE
• System Requirements: +Alarm A750 System
• Power Consumption: Up to 45mW
• Dimensions: 55 x 33 x 11 mm
• Weight: 13g (without battery)
• Temperature Range: Operation: 0°C ~ 35°C Storage: -10°C ~ 60°C
• Humidity: 10% ~ 85°C (non Condensing)
